IP68 Waterproof Explosion Proof Float Switch 250V Floating Level Switch
Description:
Cable Float Level Switch is a control device for automatic On/Off pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels and suitable for use in non-flammable liquids at 250 volts. In dangerous environments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remolding finish to make it absolutely hermetic.
Installation:
Cable Float Switch is simply placed in the liquid so that the float follows the movement of the surface. The switching height differential is adjusted by moving the weight along the cable. The differential is minimum, when weight is nearest to the float. If the viscosity of the liquid is high, we recommend an extra weight on the cable.
Specifications:
| Float Regulator | Water level Controller /float level switch |
| Rated voltage | 250V(380V) |
| Rated Frequency | 50Hz/60Hz |
| Rated current | 10A(3A) |
| Working temperature | 0 degee to 80 degree |
| Mechanical endurance | ≥100.000 times |
| Electric endurance | ≥ 50.000 times |
| Protection grade | IP68CS |
| Standard cable length | 2m 3m 5m 10m 20m as customs required |
| Switch currency | +++ ≥50 000 switch workings tested by VDE specialization |
| Protective connection | T 70U |
| Protection | waterproof |
| Working pressure | max.1bar |
| Circuit breaking capacity | Directly KW with 250V |
| Float | Polypropylene |
| Cable | polypropylene Jacket |
| Counter Weight | Polypropylene Sealed Housing |
| Rubber Cable | provided and MOQ 2000pcs |
OPTIONALS:
1. Color of balls
2. with counter weight or not
3. OEM, ODM
4. single function or double function
5. Cable length

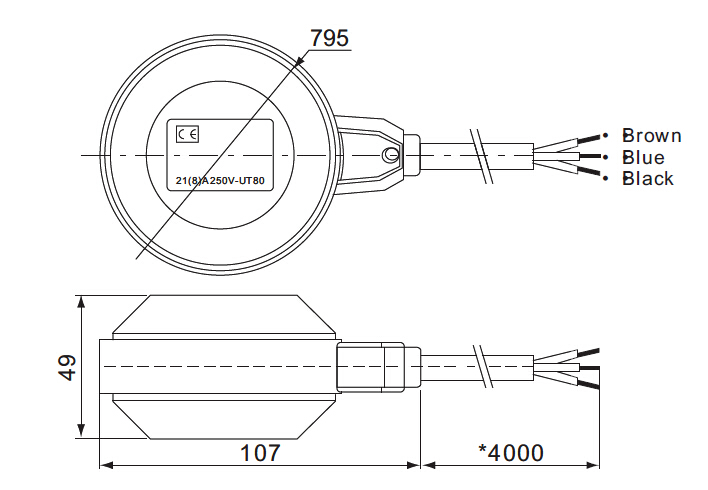

Dimension:
FAQ:
A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit
B. Would you accept OEM/ODM service?
Glad to say that there is planning department, technical department and mould tooling center in
our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
C. Would you offer free sample?
Samples are freely provided and shipping costs is paid on your end usually.
D What's your guaranty time?
At least 2 years and depend the product
E What's your payment term?
T/T, L/C; other terms is negotiable after further check
