Automatic Inverse Time Protective Relays IDMT Overcurrent Protection
Time overcurrent relays operate with a time delay, which is adjustable. For given setting, the actual time delay depends on the current through the relay coil. Higher current will cause a faster operation of the relay. The minimum relay operation current (pick-up current) is also adjustable.
The most commonly used overcurrent relay has both the instantaneous response for very large currents and the inverse time response for lower currents. A relay is intended protect loads or circuits from excessive current.
Description:
Purple Horn overcurrent protection delivers comprehensive protection schemes for low voltage applications. All Mikro's overcurrent units are microprocessor-based numerical relays and are housed in high-strength protective casing. The models in the range provide a wealth of options including programmable relay outputs to static, and digital display or dial activated..
FEATURES
A. Low-set inverse definite minimum time relay
B. High-set instantaneous
C. Separate low-set and high-set trip indicators
D. Trip starting indication

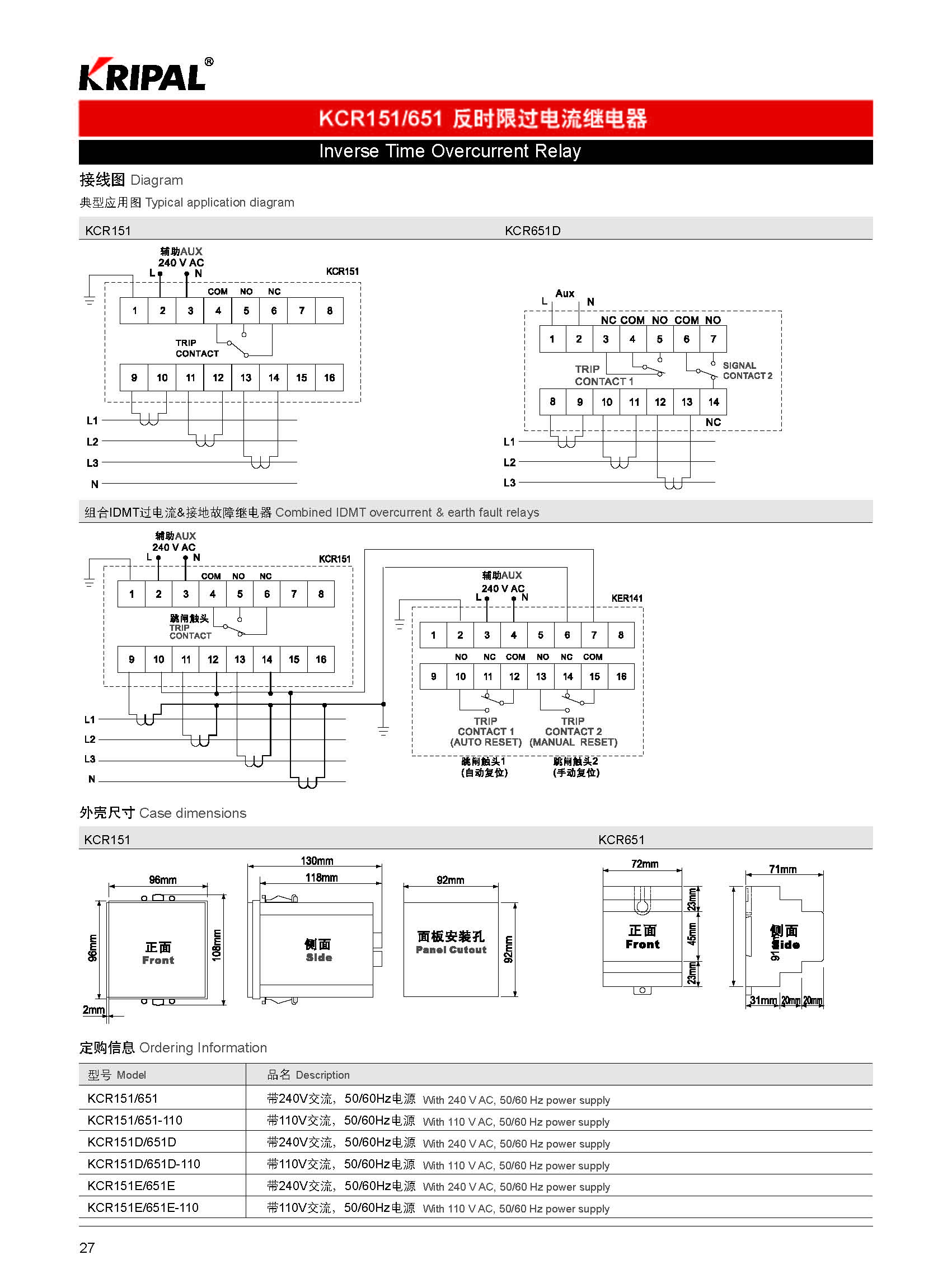

Specifications:
|
Settings
|
|
Current rating
|
5A
|
|
Rated frequency
|
50/60Hz
|
|
Load
|
< 0.3VA at In
|
|
Thermal withstand
|
4*ln
|
|
Auxiliary supply
|
|
Voltage
|
198-265VAC
|
|
Frequency
|
50/60Hz
|
SETTING RANGES
Low-set: 2A to 6A; 40% to 120%
Time multiplier: 0.01 to 1.0
IDMT curve: Normal inverse
High-set(l>>): i> to 5× l>
CONTACTS
Trip contact: Automatic reset type
Contact rating: NC NO contact type
6A. 250V AC
Silver alloy contact material
100, 000 electrical operations at rated currents
IINDICATORS
Trip indicator: Manual reset type
PERFORMANCE
Adjustable accuracy: Less than ± 5%
Repeatability: Less than 0.5% of full scale
Benefit:
- Accurate, reliable and more resistant to vibration and shock than traditional electromechanical relays
- Current measurement based on fundamental frequency, prevents nuisance tripping
- Digital display or dial activated for ease of use
- Robust casing protects the unit from external interference
- Complies with IEC 60255-26 standards
Applications:
Feeder incoming protection
Outgoing protection
Busbar protection
Full series: earth leakage relay, earth fault relay, overcurrent relay, zero phase transformer
