KRIPAL IP65 Electrical Rotary Switches 4 Pole 40A Waterproof IEC Standard

Zhejiang KRIPAL Electric Co., Ltd.
Contact Now

KRIPAL IP65 Electrical Rotary Switches 4 Pole 40A Waterproof IEC Standard

Brand Name : KRIPAL

Model Number : UKPN3-440

Certification : VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT

Place of Origin : China

MOQ : 1000 pcs

Price : negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 100000 pcs per month

Delivery Time : 20 days and depends on ordering quantity

Packaging Details : Each unit packed in a individual box

Protection degree : IP65

Rated current : 32A,40A,50A,63A

Pole : 3P,4P

Voltage : 230-440V

Material : PC、Copper

Feature : Waterproof,Corrosion protection,Low-energy

Contact Now

KRIPAL IP65 Electrical Rotary Switches 4 Pole 40A IEC standard





The switch is made of glass fiber reinforced unsaturated polyester resin shell: the spring energy storage acceleration mechanism can quickly realize connection and disconnection. The contact structure is parallel double breakpoints and two independent contact surfaces, and the contact is guaranteed by the leaf spring. The head switch can automatically determine the limit position of the switch, and there is an obvious switch mark indicating the position of the switch.



KRIPAL IP65 Electrical Rotary Switches 4 Pole 40A Waterproof IEC Standard

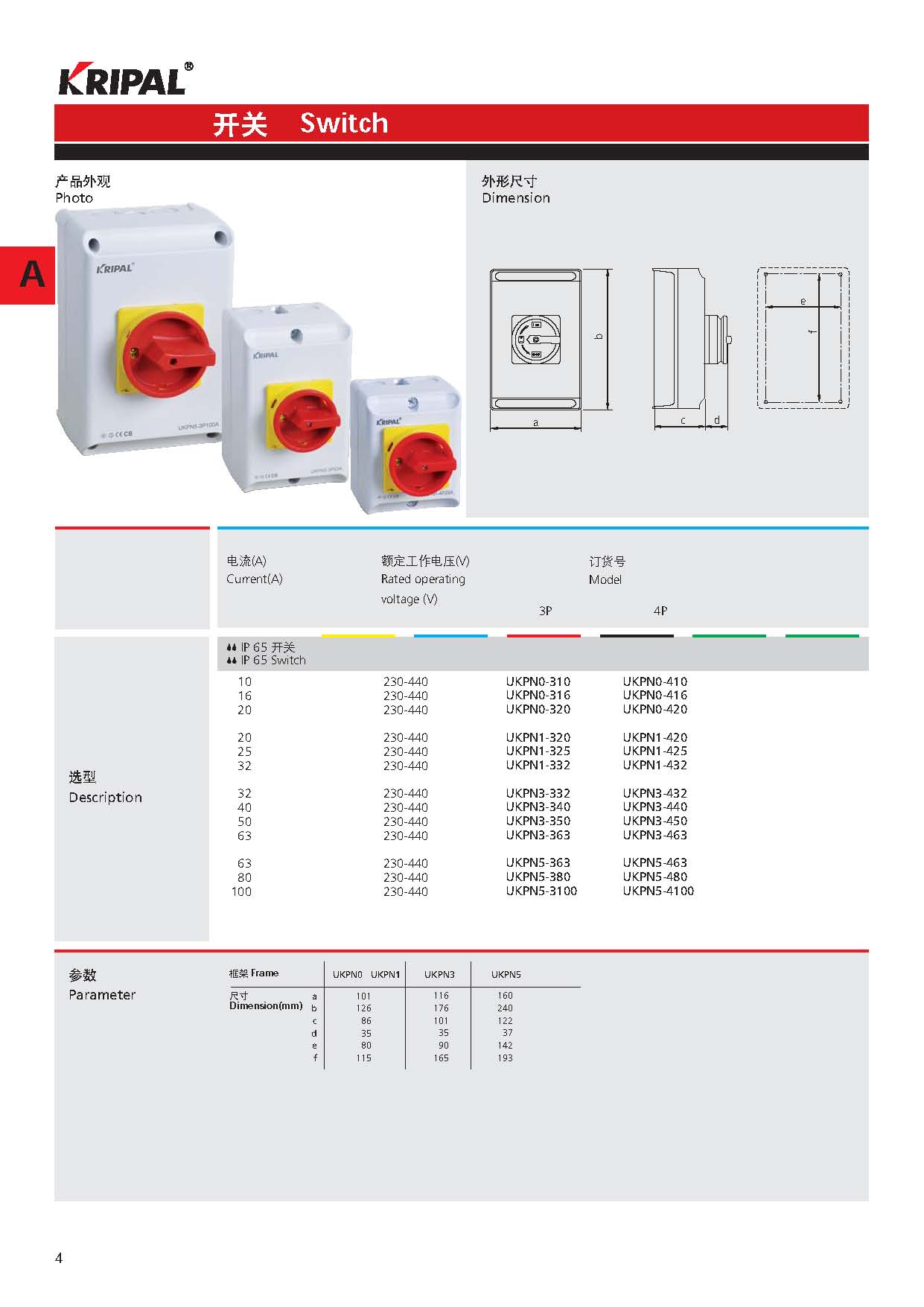

Description



 Brand Name  KRIPAL
 Model Number  UKPN0/1/3/5
 Type  Load Isolation Switch
 Number of poles  3P,4P
 Current  10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A
 Frequency  50/60Hz
 Protection  IP65
 Material  PC,Copper
 Standard  IEC/EN 60947-3, AS/NZS 3947
 Identification  VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
 Warranty  One and a half years
 Advantage



 Dustproof,Waterproof,Corrosion protection,Prevent the loss   caused by long-term illumination,Safety,Low-energy,Easy setup








Feature





Safety

The switch from the insulation disconnection contacts, Considerably more than the security requirements, in many cases, switch security level than the world existing electric block.



Flexible installation type

Switch suitable panel and can be used, installation, and base type can easily installed base and safely use screws or 35mm rail system installation, most strong flexibility and adaptability, additional contactor and neutral terminals may not remove switch and easily to increase theadditional contactor.



Convenient installation

Built-in screws can prevent manual operation sliding, pneumatic or power tools, ensure the best performance play during the installation and speed.







Application

KRIPAL IP65 Electrical Rotary Switches 4 Pole 40A Waterproof IEC Standard





Packaging & Delivery



 Lead Time  Normally 20 days after received your fund, but mostly   depends on your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading   port please kindly advise and the extra inland   transportation freight will be added accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express







FAQ





Q:How about your delivery time?

A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.



Q:Can you produce according to the samples?

A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery



Q:How many employees do you have?

A:We have more than 500 employees now,with in-house R&D teem.



Q: How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit;

2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.





Our company



Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.

KRIPAL IP65 Electrical Rotary Switches 4 Pole 40A Waterproof IEC Standard
