50/60 Hz 220V-250V Single Phase 32A IP44 Industrial Plugs / Industrial Power Sockets
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month weeks
Packaging & Delivery
- Packaging Details
- paper caton or as your request
- Port
- ningbo&shanghai
- Lead Time :
- 20-30days
Specifications:
| Product | Industrial Plug |
| Rated current | 16A,32A |
| No. of poles | 2P+E, 3P+E 3P+N+E |
| Voltage | 220V-250V; 380V-4150V |
| Protection degree | IP44 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON PA6, PC, copper |
| Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Description:
In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.
Features:
Industrial wall mounted plug has extremely good insulation ability and it is unbreakable, wearable long-time durable, resistant against oil, gasoline and salt water, almost non-aging, extremely cold-proof and splash-proof, and it is installed easily through moveable cable clamp, used securely and reliably.
.
Industrial socket supporting the use of industrial plug,have weatherproof covers, waterproofing sleeves, or may be interlocked with a switch to prevent accidental disconnection of an energized plug.
Tests:
♣ HIGH AND LOW TEMPERATURE TEST
Present in the Earth’s surface and atmosphere, space and variety of natural environmental factors induced by environmental factors, many of them larger factors on the use of electrical products and life no less than a dozen. Effect of temperature on the product is the most obvious.
At low temperature, high temperature conditions, and other relevant physical characteristics of the product environment simulation test, after the test, by testing to determine the performance of the product, is still able to meet predetermined requirements.
♣ GLOW WIRE TEST
Glow-wire test machine is to use analog technology assessment or overload due glowing elements like resistance, resulting in a short fire risk of thermal stress.
Applications:
Industrial plug and socket, connector is a new generation connector appratus for power connecting, has the features such as security & reliability.They are used widly in the place such as steel smelt, petrochemical processing, electric power, electronic, railway, building ground, airport, mine.
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |

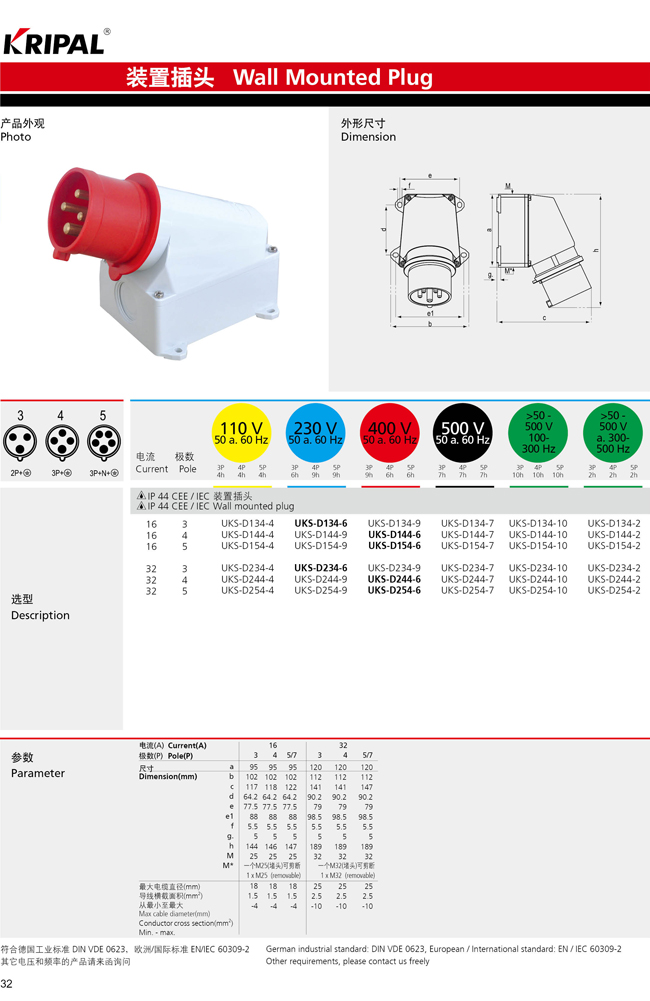

| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
